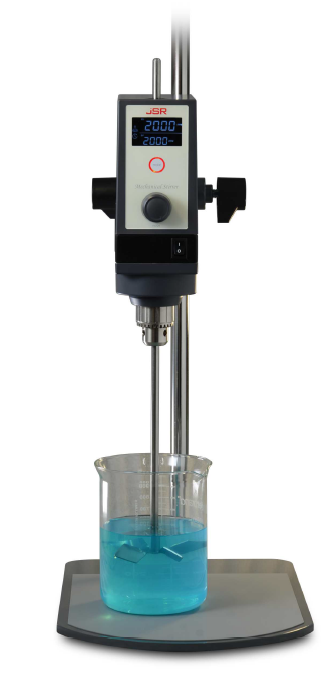

DİJİTAL MEKANİK KARIŞTIRICILAR

  • 25-60 lt Karıştırma Kapasitesi
  • 70000 ~ 150000 mPas Viskozimetre
  • 800-2000 rpm Çalışma Kapasitesi
  • Dijital Fuzzy Kontrollü
  • LCD Ekran
Kategoriler: ,

Açıklama

Art No. JSMS-070D JSMS-100D JSMS-150D
Stirring Capacity H2O 25 liter 40 liter 60 liter
Max. Viscosity 70,000 mPas 100,000 mPas 150,000 mPas
Max. Torque 200 Ncm 300 Ncm 450 Ncm
Speed Range 100 ~ 2000 rpm 80 ~ 1200 rpm 50 ~ 800 rpm
Speed Control Resolution 5 rpm 1 rpm 1 rpm
Gear Rate 2.0 : 1 3.0 : 1 4.5 : 1
Power Consumption 150 Watt 170 Watt 200 Watt
Motor Rating (input/output) 110 / 85 Watt
Timer 1 min to 99 hr 59 min
Control Digital Fuzzy Control with Capacitive Touch Button and Jog Dial
  Full Size Digital Back Light LCD Display
  Independent ON/OFF Switch
Max. Impeller Diameter Φ 10 mm
Motor Brushless Shade Motor
Safety Over Load Protection
  Over Heat Protection
Material Aluminum casting with epoxy powder coating, ABS Plastic
Power Rating 650 watt, 3.0 amps
Electrical Requirement 230 ± 10% VAC, 50/60Hz, 1-Phase
Power Plug CEE 7/7 Schuko European Standard
